Z250SL stator trouble

On the morning of the 15th of January 2020 the faithful(ish) Kawasaki struggled to start, turning over rather slowly. But it had been a cold night and I figured it might just be one of those things.

Later that day when I came out from work the starter solenoid merely buzzed, which led to the great disgrace of having the second-in-command push me up and down the cap park trying to get the thing started. It didn't want to know until I'd borrowed a screwdriver off him (further disgrace) and removed the connector block from the headlight as there is no switch to turn the light off. After this it fired up no problem and, after refitting the headlight (my eyes!!) I managed to ride home. The light was dim, the dash flickered and eventually died, but I did make it home - I had less than 9v in the battery by the time I got to safety.

I decided this was likely due to the battery being well over 3 years old and being a cheaper Thai Yuasa, I'd once had a battery fail similarly on the CB250 - that one could barely power the neutral light after a warm day sat outside. So..

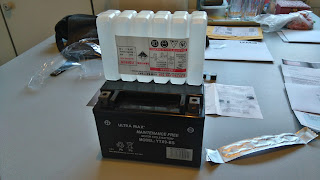

Those reading this from the UK may know that it is illegal to sell batteries with the acid still separate as certain scummy elements of society can't be trusted to not squirt it in people's faces. This was sold as "acid-added" but it wasn't. I'm okay with this, I just found it amusing. It's not like the police are going to check what's being sent through the post! Anyway, running voltage with the light in:

I have a sneaking suspicion that 12.4v isn't quite right. Also the light looked decidedly yellow:

If it jumps considerably when I disconnect the headlight that may mean I have a charging problem..

14.2v. Bollocks.

I refitted the headlight and decided to give it a run to work anyway, perhaps it'll charge happily at higher revs? It did not, running along read 12.7v and by the time I got home I had around 10v, no doubt helped by the new and freshly charged battery. Time to check the resistance and AC voltage of each of the stator coils.. Which means time to take the tank off yet again. I'm becoming quite good at it now!

The connector is a big one at the front left with 3 yellow wires running into it. When running some coils produced 39VAC while others managed 25VAC, and one set of coils (i.e. one wire in the connector) read 10 ohms of resistance while the other two read 2.8 and 3.2 ohms. Yep I've got my first stator problem to deal with, superb.

So, here's a guide of how to replace the stator on your 250SL. I have a funny feeling this might be a popular post in the future! Start by removing the stupid belly pan that does nothing but get in the way, then remove the front sprocket cover and the cover of the reducing gear for the starter motor. This is all straight forward, just bolts. Also remove the neutral wire because it'll just be in the way if you don't.

You will also need to drop the oil as the alternator on the 250SL runs in oil, so when you take the cover off all that oil will fall out. This is made particularly fun because the bike does not have a centre stand so it will keep dripping for as long as you leave the cover off.

Now, how to get the cover off! Remove all the bolts that hold it on (including the two that were behind the starter motor reducer gear!), unclip the 3 wire connector and unthread it from the rest of the wires that work their way up the frame aaaand it should pull off. I tried this to no avail. I tried rubber malleting it to no avail. I tried levering it off against the starter motor to no avail. In the end I used some washing line and brute force..

A good couple of tugs had it free. There is a seal around the starter motor shaft that is very tight, KLX250 owners have the same problem.

Hmmm. Doesn't look too good.

This bit seems alright though, thank goodness. What a pain that would be to get off the crank!

So, simply remove the two JIS screws that clamp the wires in place and then remove the three caphead screws that bolt the stator in place.

There was no threadlock on the bolts, they were just tight. Do use the correct bit for the screws, if the driver cams out and you mess them up you could have a real job on your hands. With the stator free you can closely inspect for damage (as if you'd need to!).

Well there's your problem. At least I was right! I managed to get hold of a replacement stator from an ebay breaker who had broken a 1500 mile bike, mine for £78.95. I noticed there were also some Chinese units for sale for around £50 but I cannot comment on them, though the pictures looked exactly the same as the Kawasaki ones. Bolt the stator in place and clamp the wires without pinching them (which seems to be all they want to do..). Don't bother with torque specs, the fasteners aren't new and the threads aren't clean.. Just do them up so they won't come loose.

Right, time to put it all back together. Simply replace the alternator cover complete with new stator and bolt it up. I actually bought a new gasket for this but the original didn't tear when I pulled the cover off so I just put it all back. The gasket part number is 110610891 if you're paranoid. Also watch for the way the flywheel will pull the cover into place and the way that the wires love to get trapped between the cover and the crankcase - don't chop them up by tightening all the bolts down! I nearly did..

With the cover bolted into place the only other difficult part is refitting the starter motor reducing gear. This is difficult because you need to get the teeth to line up, for reference the gear needs to go on this far:

Just keep trying until it fits. After that simply bolt everything back on (no I didn't use any sealant or gasket on the reducer gear cover, no it doesn't leak), reconnect your electrical connectors and put the tank and all the plastics back on (if you're confident). Refill the engine with oil and it's time to give the starter a prod..

Job's a good 'un. What'll be next I wonder..?

Z250SL - more ignition wiring rot

Back in March 2018 I found myself dealing with some poor quality wiring which left me nearly stranded in the rain. I affected a particularly dodgy repair which lasted until the 6th of January 2020 when, with a mere 21118 miles on the clock, the bike stopped dead at the top of the driveway one morning. I didn't know what caused it but was thankful I wasn't in the middle of nowhere when it happened, at least the bike isn't vindictive..

Once home (in the dark of course, it being January) I found that the bike would sometimes turn on, but more often would not want to know. Turning the bars had mixed results. A quick look into the connector of doom revealed fat yellow sparks, aha! Sure enough..

The connector that was on the end of the wire was long since lost to the corrosion gods.

There was nowhere near enough spare length on the wire to cut it back again and in any case the connector is a weak point so I decided to liberate some wire from work and splice it in myself, make a permanent connection instead - one that can't rot off! Cutting the white wire back revealed green at least 2cm upwards inside the insulation, the wiring used on the 250SL is of incredibly poor quality. Not that it should come as any surprise by now!

I lopped the wire off from the other side of the connector and attempted a linesman's joint, this gave the copper strands a great chance to stab my thumb in many places. Ouch.

Running the soldering iron along the heatshrink made it shrink a bit, I don't think this was particularly successful in sealing the joints from water but it will at least stop the bare wires contacting the frame.

And that was that, no further issues found. Not the most impressive bit of engineering but I feel like I should document these things as chief 250SL abuser!
